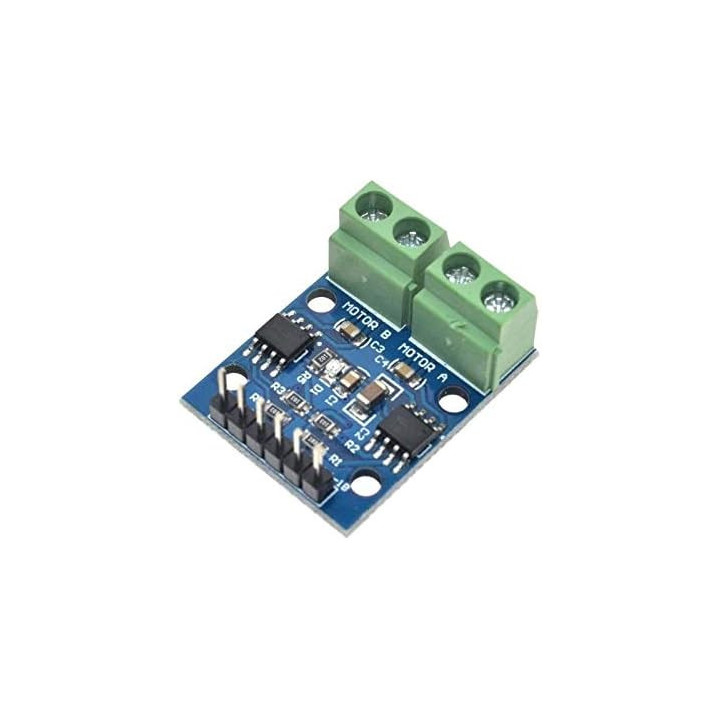

Stepper motor/h-bridge

kr30.00

Tax included

Specification: Power supply voltage: DC 2.5-12V, with high current lead capacity, each channel can pass a direct current of 800mA and the maximum current capacity can reach 1.5A.
Small and compact: PCB board size: 28 x 21mm/1.10 x 0.83 inch, extremely small size, suitable for mounting. With Fixed Mounting Hole Diameter: 3mm/0.12"
Safe to use: Engine control unit with dual L9110S chips. The built-in clamping diode of the L9110S chip can release the reverse impulse current from inductive load, making it safe and reliable when using driving relays, DC motors, stepper motors.
Use: Suitable motor range: Motor operating voltage between 2.5V and 12V, maximum operating current of 0.8A, can run two DC motors at the same time, or 1Phase 4-line 2-stepper motor
